ProtoStax Micro Servo Analog Gauge Add-On

ProtoStax Micro Servo Analog Gauge Add-On

$3.00 USD
$3.00 USD
Sale Sold out
Shipping calculated at checkout.

Out of stock

Click here to be notified by email when ProtoStax Micro Servo Analog Gauge Add-On becomes available.

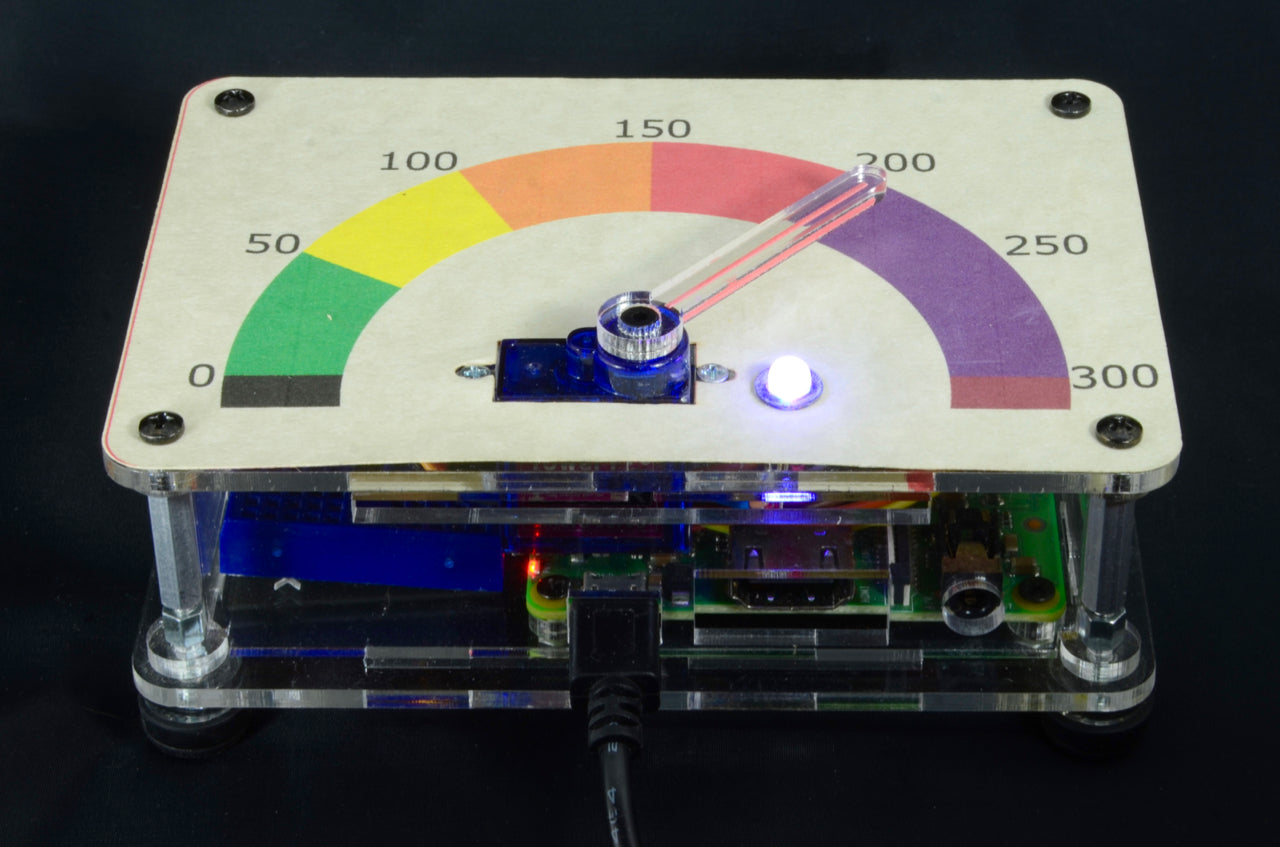

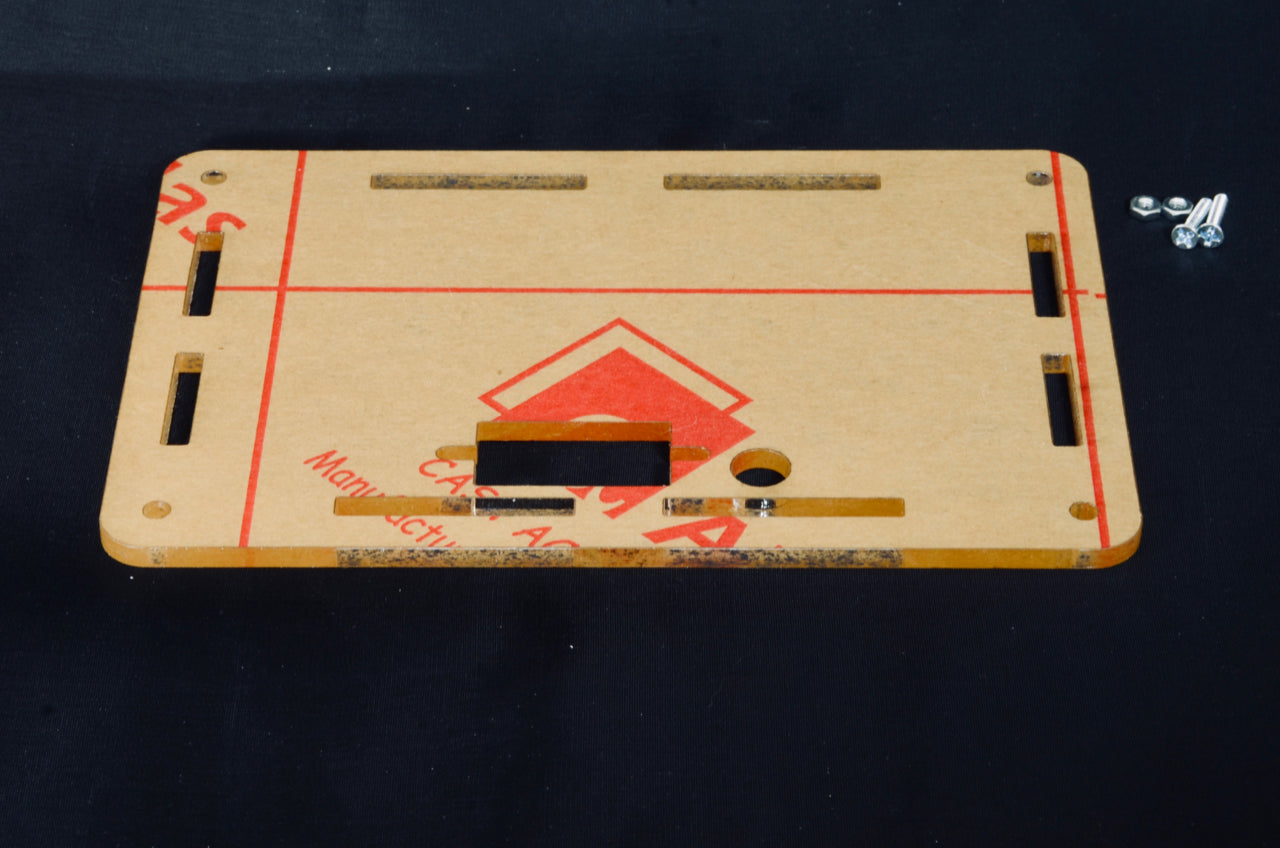

Add a micro-servo to your ProtoStax Enclosure! This Add-On consists of a top plate with a cut-out to fit micro-servos like the SG90, SG92R and Futaba micro-servos, as well as a cutout to fit a 5mm LED with plastic holder (We have a common-anode RGB LED with plastic holder that will fit in this hole - add separately)

Swap out the top plate of your existing ProtoStax Enclosure with the corresponding unit from this kit. ProtoStax Enclosure not included - you need to get that if you don't already have it.

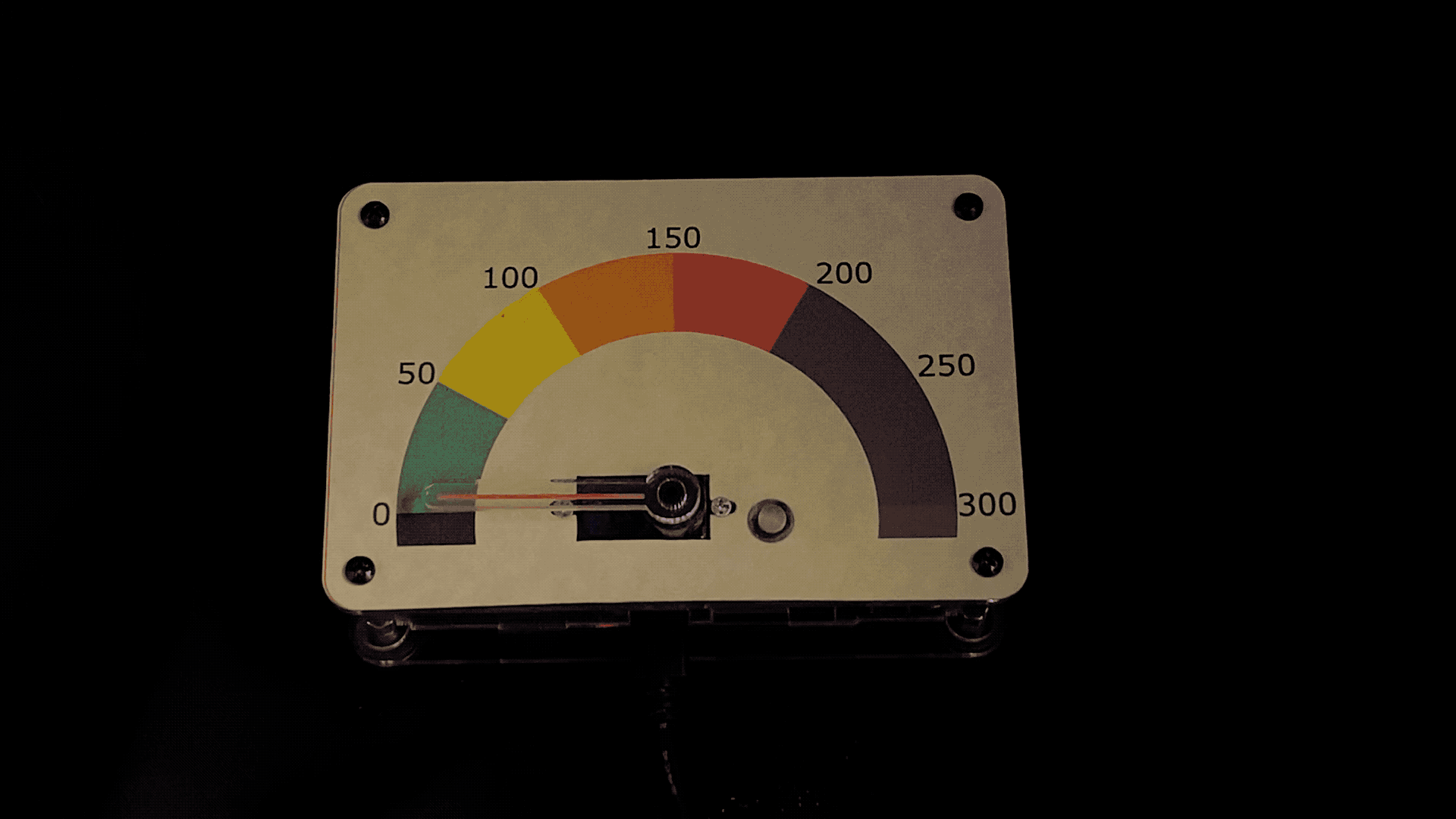

We also have a ProtoStax Analog Gauge Needle Horn for Micro Servo - 2F 21 Teeth (add separately) that will fit the micro-servo and can be used to complete your Analog Gauge.

We also have card-stock color gauge scales for

  • Air Quality Index
  • Temperature, Humidity and Pressure

for purchase, that will fit your ProtoStax Enclosure Top plate. You can design and print your own too, of course!



This Add-On does not include the Enclosure. Make sure to add a ProtoStax Enclosure to your order if you don't already have it!
