ProtoStax Enclosure for Raspberry Pi 5 / 4 / 3 Model B/B+

Name: ProtoStax Enclosure for Raspberry Pi 5 / 4 / 3 Model B/B+
Brand: ProtoStax
SKU: PSRPIBPBLK
Price: 15.0 USD
Availability: OutOfStock

$15.00 USD

Sale Sold out

Shipping calculated at checkout.

Low stock: 4 left

Color Crystal Obsidian

Product variants

Quantity

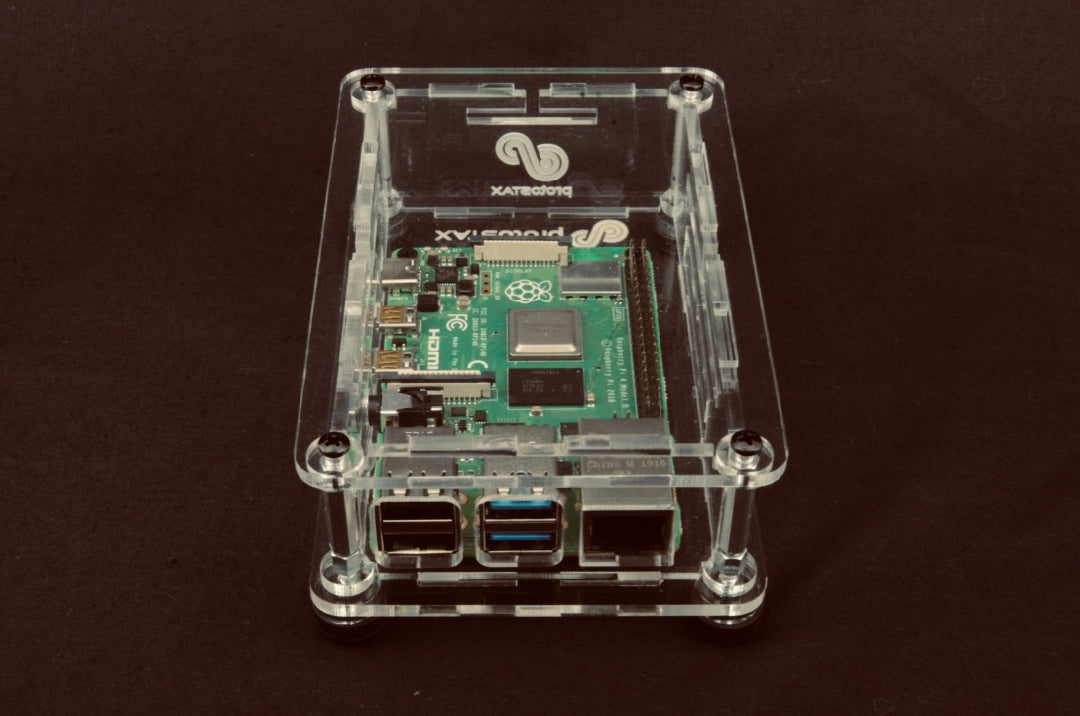

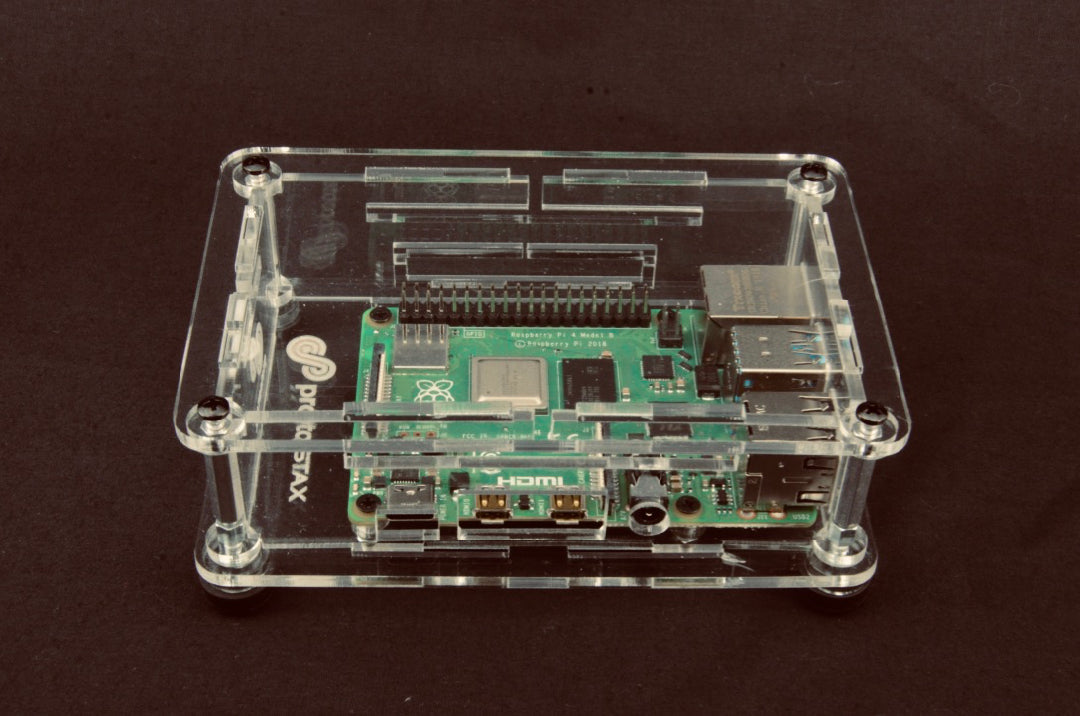

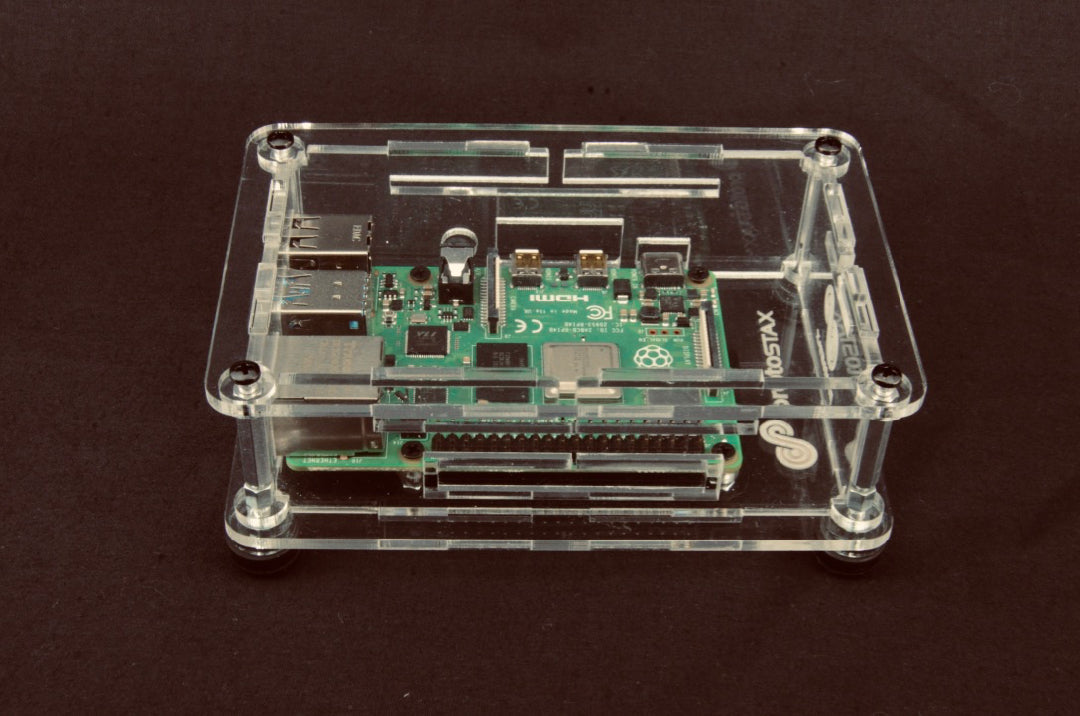

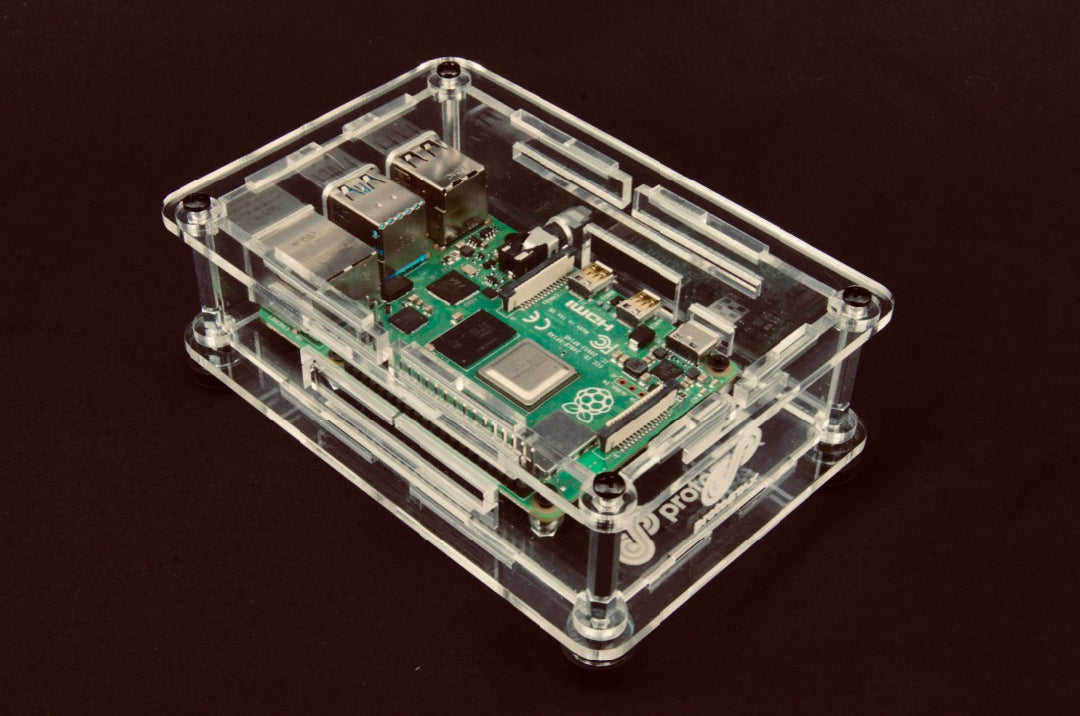

This Raspberry Pi 5 case is stackable, modular, extensible and hackable!

It fits the latest model 5, model 4B, as well as the older Pi 3 Model B+, the Pi 1 Model B+! We provide different side walls that can fit both old and new port configurations.

The case has an internal clearance of over 1.2 inches, which gives you ample room to install a HAT/pHAT/Bonnet of your choice!

Extension kits and add-ons are available to add functionality to your ProtoStax enclosure. You can add a fan (or two), switches, a Raspberry Pi HQ Camera (or Pi Camera), a Tripod mount (and more!) to your ProtoStax Enclosure by swapping out vanilla pieces with those from extension kits/add-ons. Check out our extension kits and add-ons!

Features

Fits the model 5, model 4 (aka 4B), Pi 3 Model B+ and the Pi 1 Model B+!
Internal clearance of over 1.2 inches, which gives you ample room for a HAT/pHAT/Bonnet
Made from high quality cast acrylic

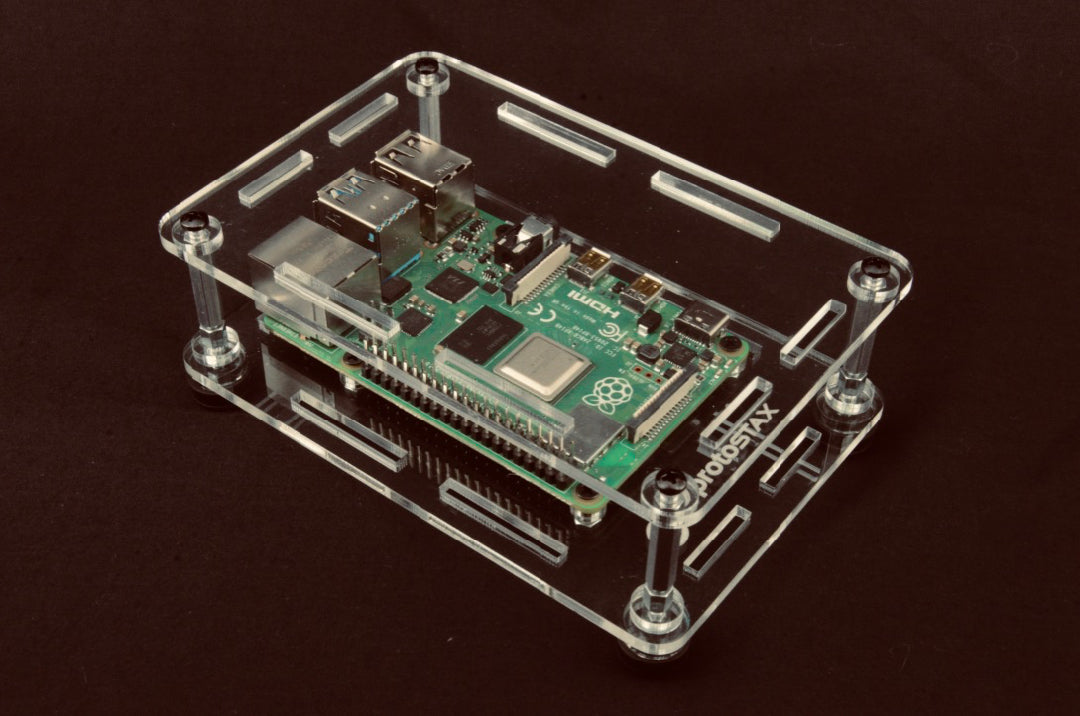

Clear acrylic provides a beautiful finish with a modern visual design with full view of your electronics

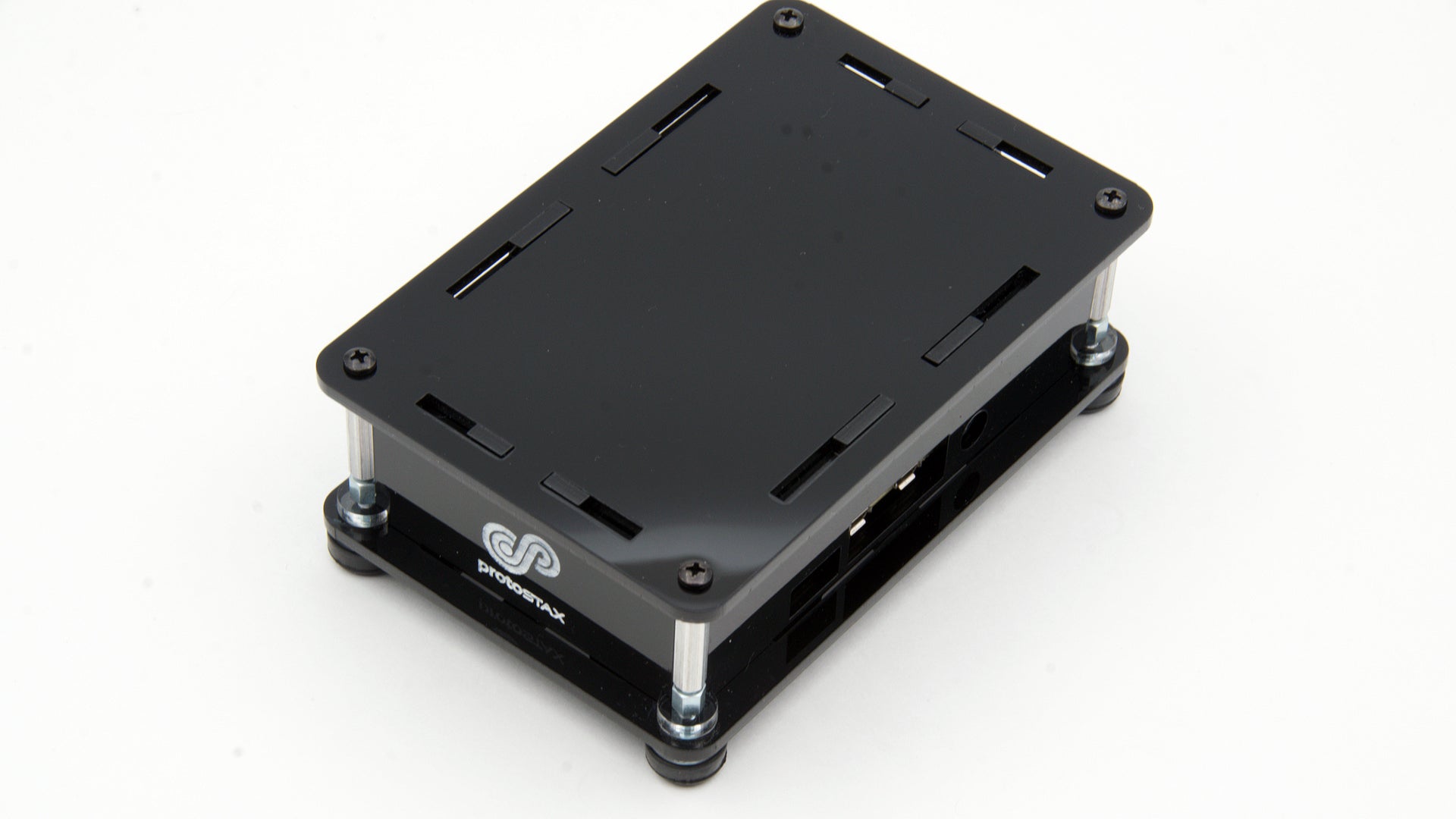

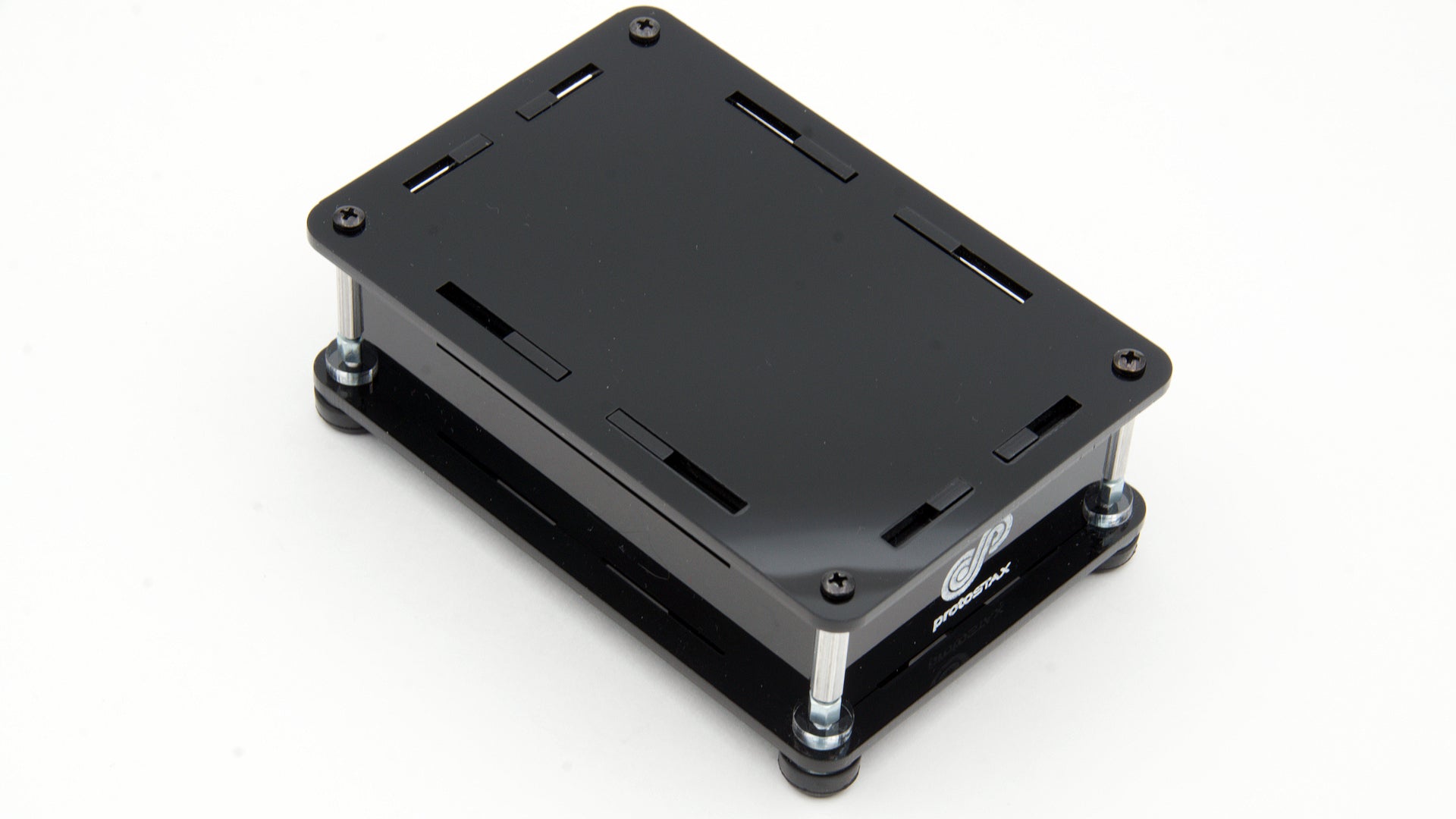

Our Obsidian black acrylic gives you a sleek and attractive option when you want to keep your brains and sinew under the covers and just highlight the peripherals
Pre-drilled and threaded mounting holes in the base plate allow you to directly screw the board in without needing additional nuts, making it very easy and elegant for you to use. A thoughtful feature that you will surely appreciate if you have larger hands and dealing with tiny M2.5 nuts!
Acrylic risers raise your board off the base plate for improved airflow and firm level mounting
Metal standoffs and screws provide solid and durable support
Rubber Feet protect your table surface while providing maximum airflow by elevating the enclosure
Cutouts leave all ports accessible
Cable Management: Easily accessible cable management cutouts in the side walls allow you to smoothly insert your cables and access wiring to external systems. In the Open Configuration, the Wall slots on the top and bottom plates (where the side walls usually insert into) can also be used for cable management for even more accessibility and organization.
You can mix, match, customize, and expand your project enclosure because ProtoStax enclosures are modular and stackable and work with each other.
Extension kits and add-ons add functionality to your enclosure - add a fan (or two), switches, Raspberry Pi HQ Camera, Tripod mount and more!

List of Compatible Devices

Raspberry Pi 5	Raspberry Pi 4 Model B
Raspberry Pi 3 Model B+	Raspberry Pi 3 Model B
Raspberry Pi 2 Model B	Raspberry Pi 1 Model B+

Other Raspberry Pis

We also have enclosures for the Raspberry Pi A or Raspberry Pi Zero/ZeroW variants.

Technical Details

4.84 in length x 3.24 in width x 1.4665 in height (1.8 in height including rubber feet) (122.94 mm x 82.3mm x 37.25 mm (45.72mm including rubber feet))
Usable space inside: 4 in length x 2.4 in width x 1.2165 in height (101.6mm x 60.96mm x 30.9mm)

Visualize in your space using AR!

View full details

Visit Our Learning Hub

• Assembly Instructions - Video Tutorials & User Manual with step-by-step instructions.

• Sample Projects - with full instructions & code. Find inspiration for your next project.

• Tips and Tricks - Tips & tidbits on Electronics and Making to get you on your way!

Take me to the Learning Hub!

Featured projects

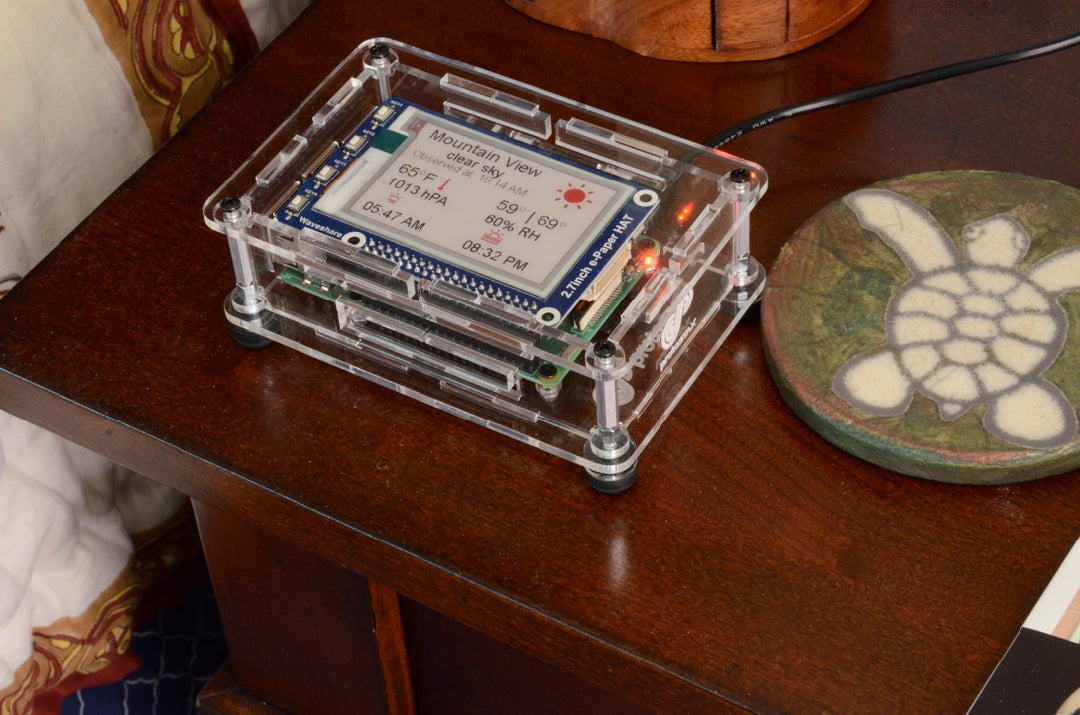

Weather Station with ePaper and Raspberry Pi

Weather Station with ePaper and Raspberry Pi

Create a tabletop weather station with ePaper display, a Raspberry Pi, and a ProtoStax enclosure.

Raspberry Pi High Quality Camera Headless Setup Tips

Raspberry Pi High Quality Camera Headless Setup Tips

Learn how to setup and use the new Raspberry Pi High Quality Camera in a headless setup.
International Space Station Tracker

International Space Station Tracker

Track the ISS' current location & trajectory using a Raspberry Pi, ePaper Display, ProtoStax Enclosure and Python.

PhotoStax - Digital ePaper Photo Frame

PhotoStax - Digital ePaper Photo Frame

Make your own minimalist and modern photo frame with a tri-color ePaper Display, Raspberry Pi, ProtoStax Enclosure and Python

View all

ProtoStax Enclosures are Stackable, Modular & Extensible

ProtoStax eases your path from Prototype to Product. Go from a jumble of wires and boards to an attractive product you can proudly display on your coffee table, carry around, share with friends and family, or even sell to customers! Make your prototypes useable and attractive with ProtoStax!

Modular

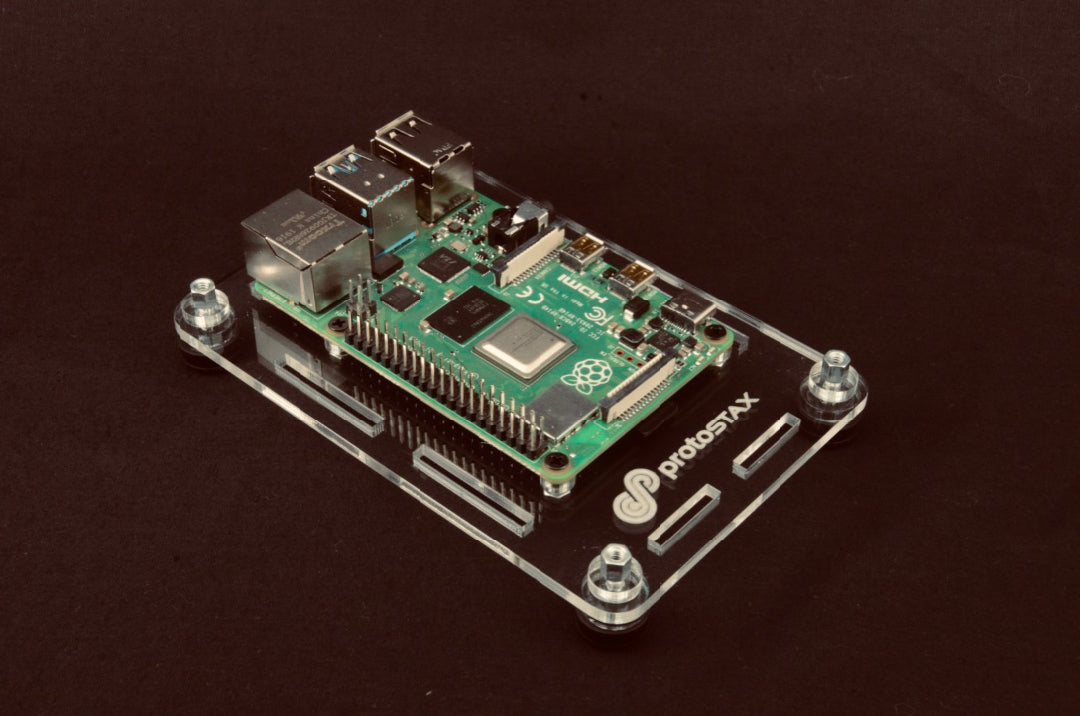

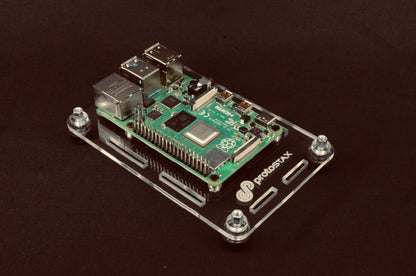

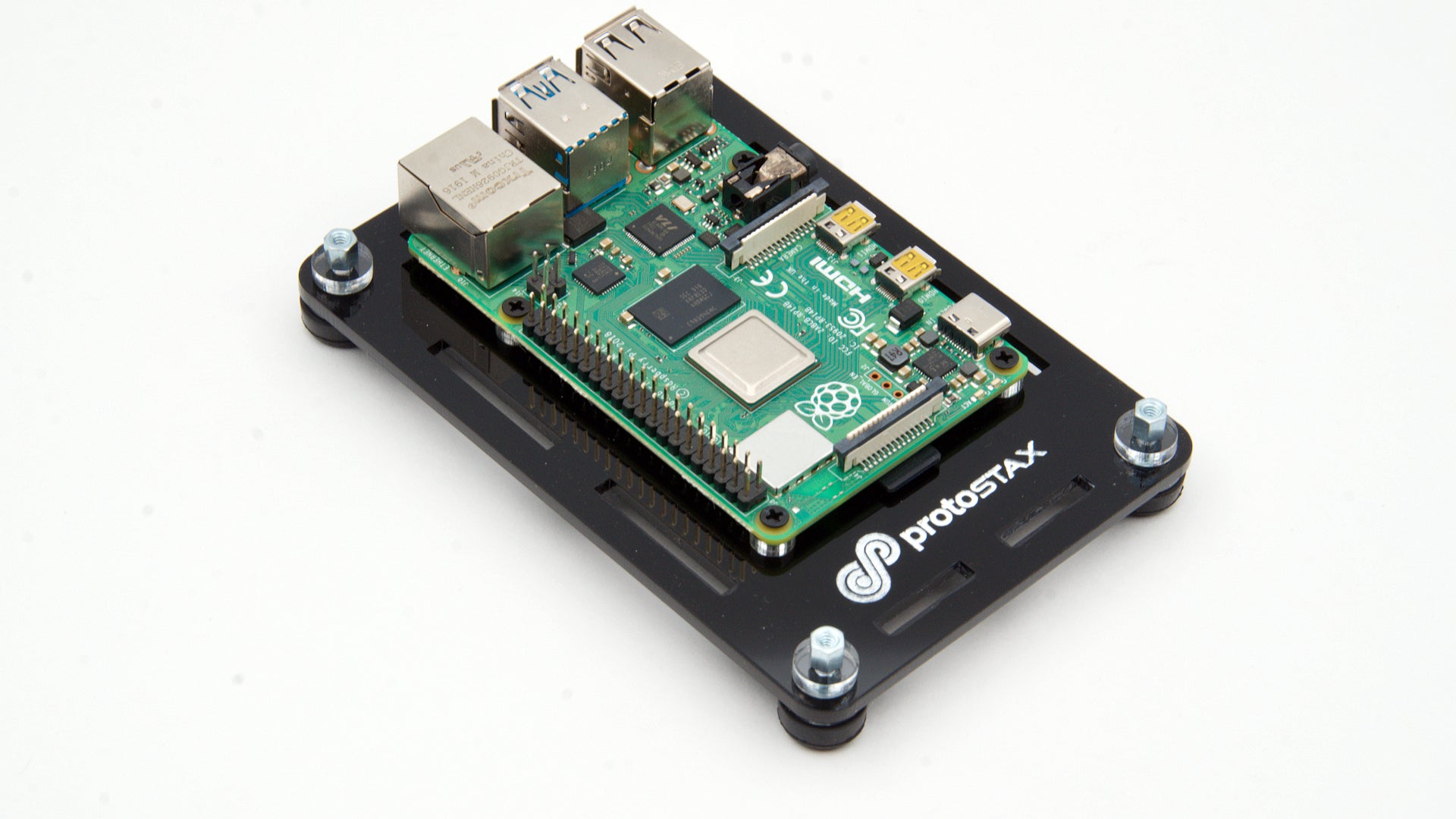

Use it as a prototyping plate, with full and open access to your device while prototyping. Rubber feet protect your board and your table top!

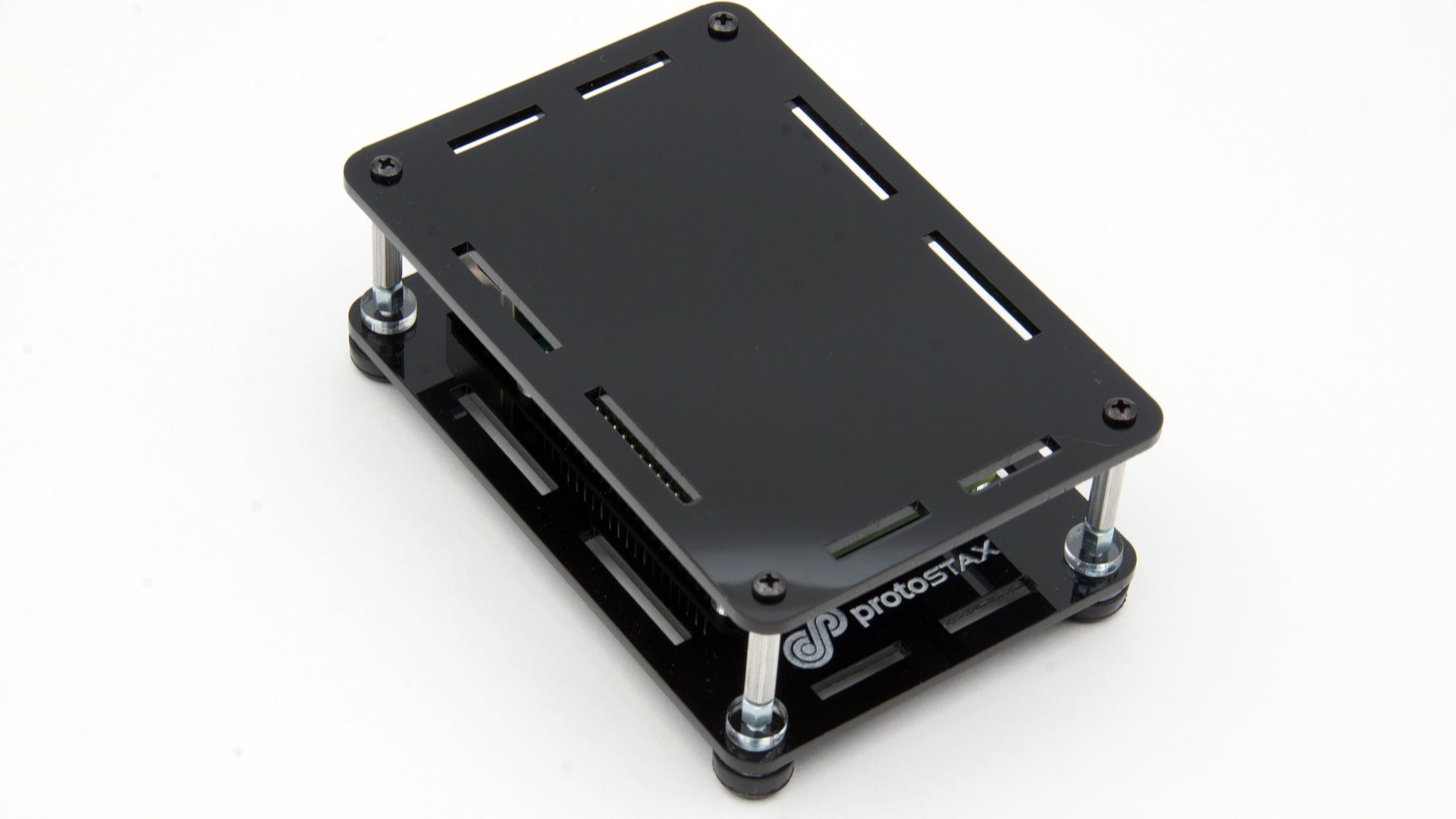

Omit the side walls and just add the top for an open configuration with more airflow and open access.

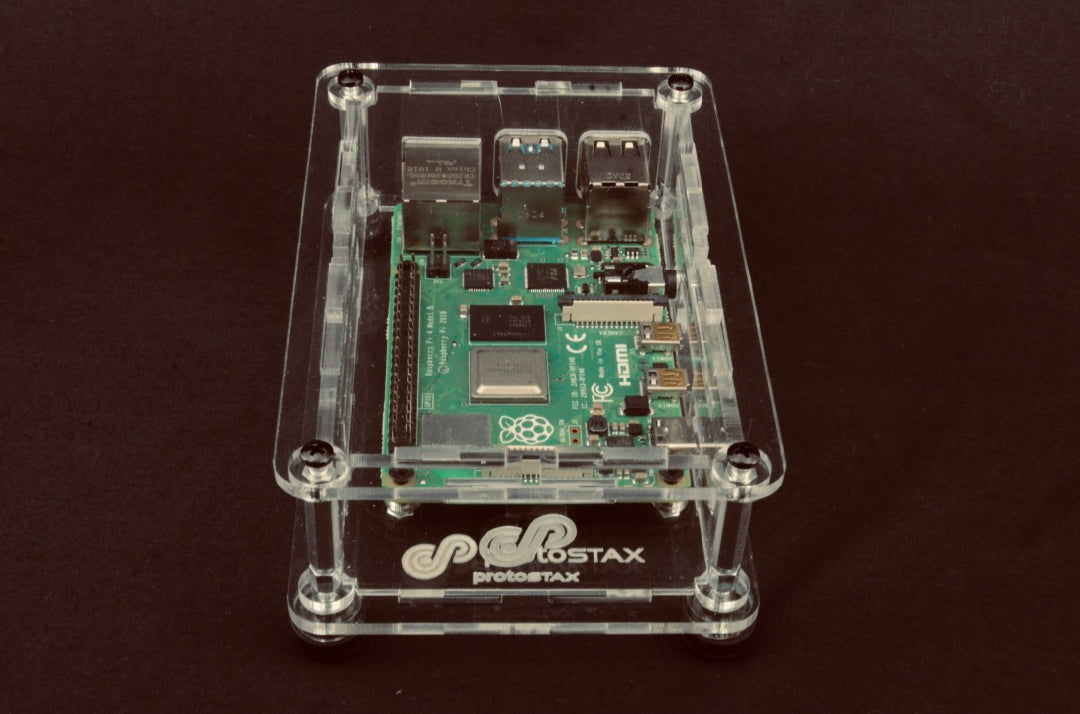

Add side walls and the top to form a fully enclosed case for maximum protection.
The cases offer connectivity to external systems using our unique cable management methods (see features above)

Extensible

Extension kits and Add-Ons allow you to add functionality to your enclosure. Add a fan or two, switches, camera & tripod mount, and more! Thanks to our modular design, you can simply swap out existing pieces with new pieces that offer additional functionality like displays, switches, fans, cameras, tripod mounts are more.

Just filter by "extension kit" or "add-on" in the main shopping page to view the choices, or click below!

Check out Extension Kits

Stackable

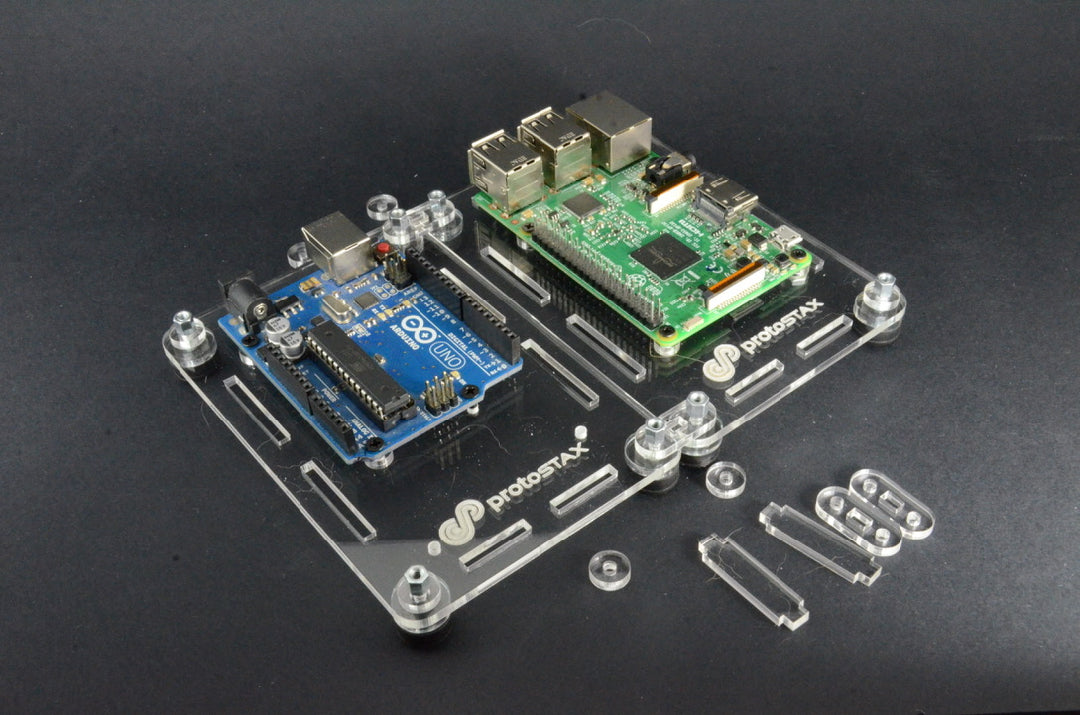

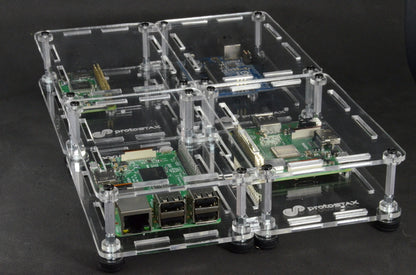

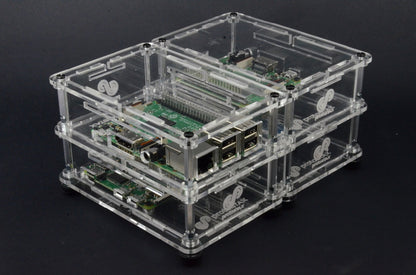

All ProtoStax cases are compatible with each other and can be stacked side-by-side (horizontally) or one on top of the other (vertically). Mix-and-match multiple ProtoStax cases and put together a larger enclosure from the individual ones! Our Raspberry Pi + Breadboard, or Arduino + Breadboard enclosures are popular bundles, allowing to include more breadboarded circuitry while still making your prototype attractive and usable. Our stacking features and interoperability between enclosures means you can create your ultimate hybrid Raspberry Pi cluster/tower, mix-and-matching various Raspberry Pi A+, B/B+, Zero boards as you see fit!

Geat experience

Ordered my Rpi enclosure in April (2024), it arrived quickly. Began to assemble my enclosure and noticed one of the screws that mounts the enclosure top to the base was bent, so contacted ProxStax support. Got a response the next day indicating they would send me a replacement screw, which they did (actually sent two). In my support request also asked about an issue mounting my Rpi5 to the base of the ProtoStax enclosure. I had an NVME HAT on my Pi (Geekworm X1001) which used the Rpi5's mounting holes to attach the HAT standoffs, thus preventing me from using them to mount the Pi onto the ProtoStax base. Support was extremely helpful suggesting ways to solve that problem especially considering I sent several emails asking questions, each one getting a patient reply from ProtoStax support. Such great support is unusual in my experience, I hope this comment helps others as they look for enclosure solutions. My Rpi5 is happy and protected in its enclosure. It is well engineered, sides and end panels fit together tightly and allow access to all ports. I can continue development with easy access to USB/HDMI/MIPI and power ports. I would happily recommend ProtoStax to my friends.

As advertised, prompt handling and shipping. A good transaction.
