ProtoStax – Modular, Extensible & Stackable Enclosures

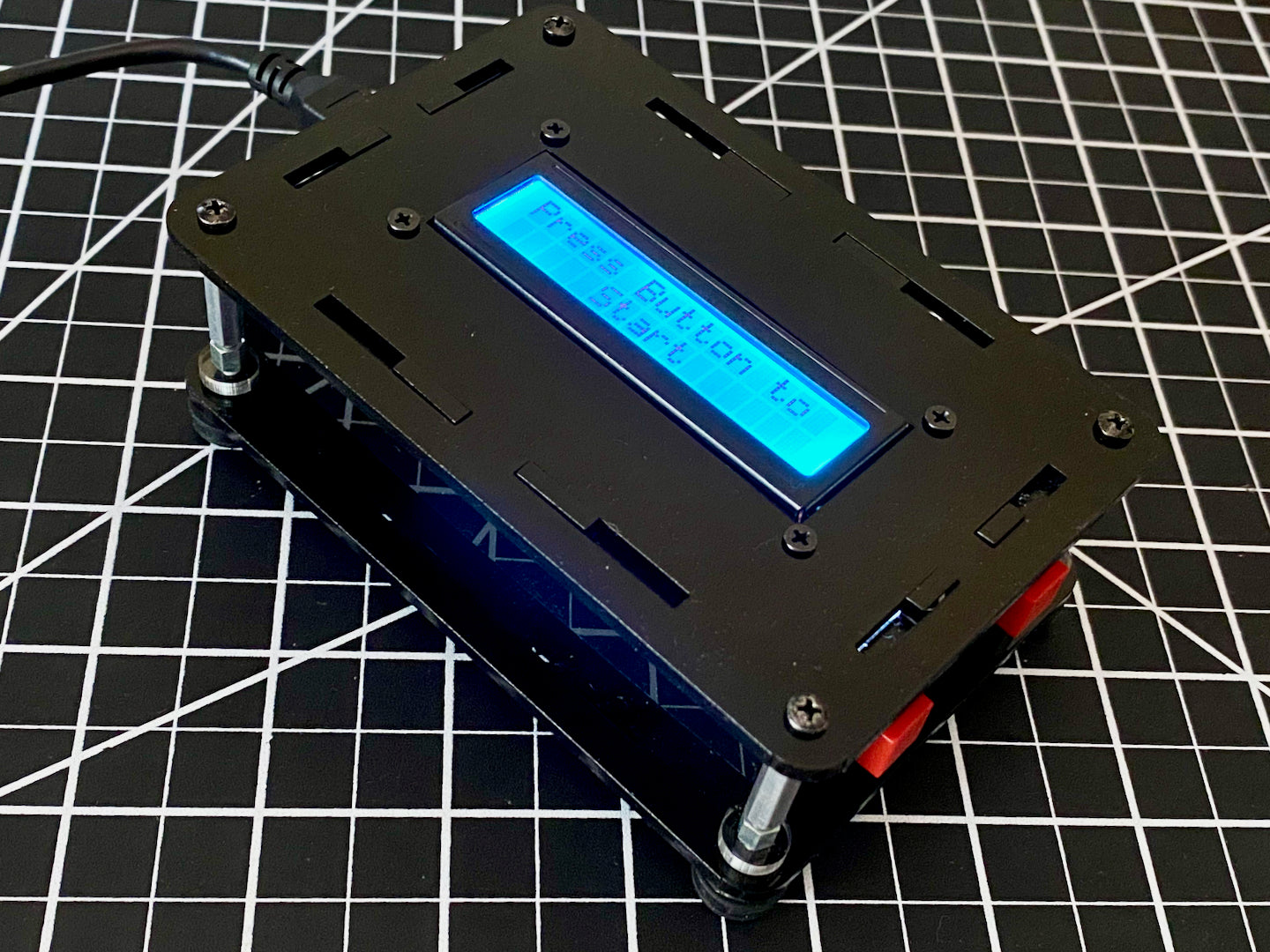

ProtoStax Enclosure with ProtoStax LCD Kit V2 and ProtoStax Kit for Momentary Push Button Switches in Obsidian

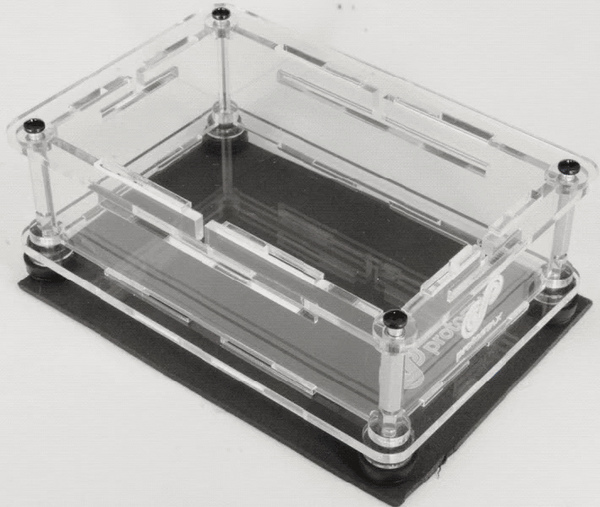

What is ProtoStax?

You have your breadboarded prototype working nicely. Before you toss that into a corner, never to see the light of day again, ask yourself - How do you go from that to an attractive prototype that you can use, demonstrate, and show off? A finished, usable project also greatly improves your satisfaction quotient and interest in moving on to the next and more advanced project!

This requires several hurdles to be crossed. Designing your own enclosure, 3D printing it or fabricating it from existing material, or even using an existing project box and shoving everything in there - all of it is cumbersome and offers an extra barrier towards making a functional project.

We make it easier for you to bridge this chasm with our modular, extensible and stackable enclosures. You can start with using just the base as a prototyping plate. Assembly later is very easy due to its modular design. We also have different peripheral options included like LCD screens, buttons, camera mounts, tripod mounts that help make your prototype more real-world and interact-able.

So what are you waiting for? Start building stuff that you can actually use and demo - easily and cost-effectively!

SHOP NOW
  • ProtoStax Enclosure / Case in Platform Configuration showing Arduino. Pre-drilled and threaded mounting holes make assembly easy and convenient. Acrylic risers elevate board off the surface for improved airflow

    Use it as a Prototyping Platform

    When you begin prototyping, use it as a prototyping plate in what we call Platform Configuration which firmly mounts your board to the bottom plate, giving you ultimate access to the board. Removable rubber feet will help protect your table or surface as well, and elevate the board!

  • ProtoStax Enclosure / Case in Open Configuration showing Arduino

    Use it as an Open Enclosure

    Leave out the Side walls and just add the Top plate for an Open Configuration with more airflow and open access. This is useful when you want protection from grubby fingers while still having accessibility and good airflow – useful for the Raspberry Pi 4 that’s churning away on bitcoin mining!

  • ProtoStax Enclosure / Case in Fully Closed Configuration showing Arduino

    Use it as a Fully Closed Enclosure

    Get maximum protection with our Fully Closed Configuration. Our beautiful, elegant enclosures are not just functional but great-looking, light-weight, and offer considerable protection for your project! They also offer ample room inside for a shield, or a HAT and components.

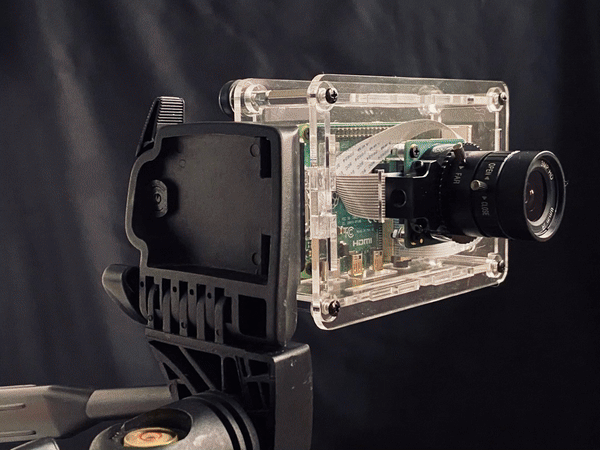

Add Functionality with Extension Kits and Add-Ons

Projects often need peripherals like display screens, buttons, fans, sensors and the like. Often, that involves designing the peripheral layout yourself, drilling and cutting holes (which is difficult for square or rectangular components), or 3D printing custom enclosures and jigs. With ProtoStax Extension Kits and Add-Ons, we make it easier for you to integrate these peripherals into your next project.

Thanks to our modular design, Extension Kits and Add-Ons allow you to swap out existing pieces of your ProtoStax Enclosure with new pieces that offer additional functionality

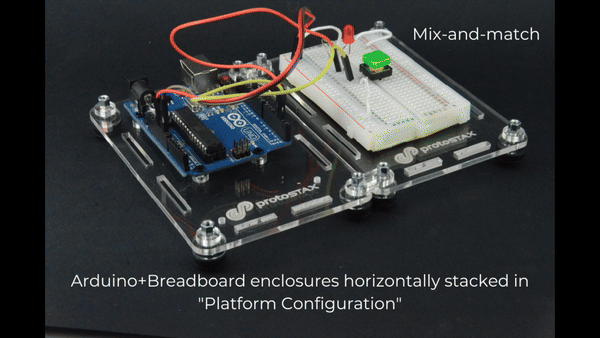

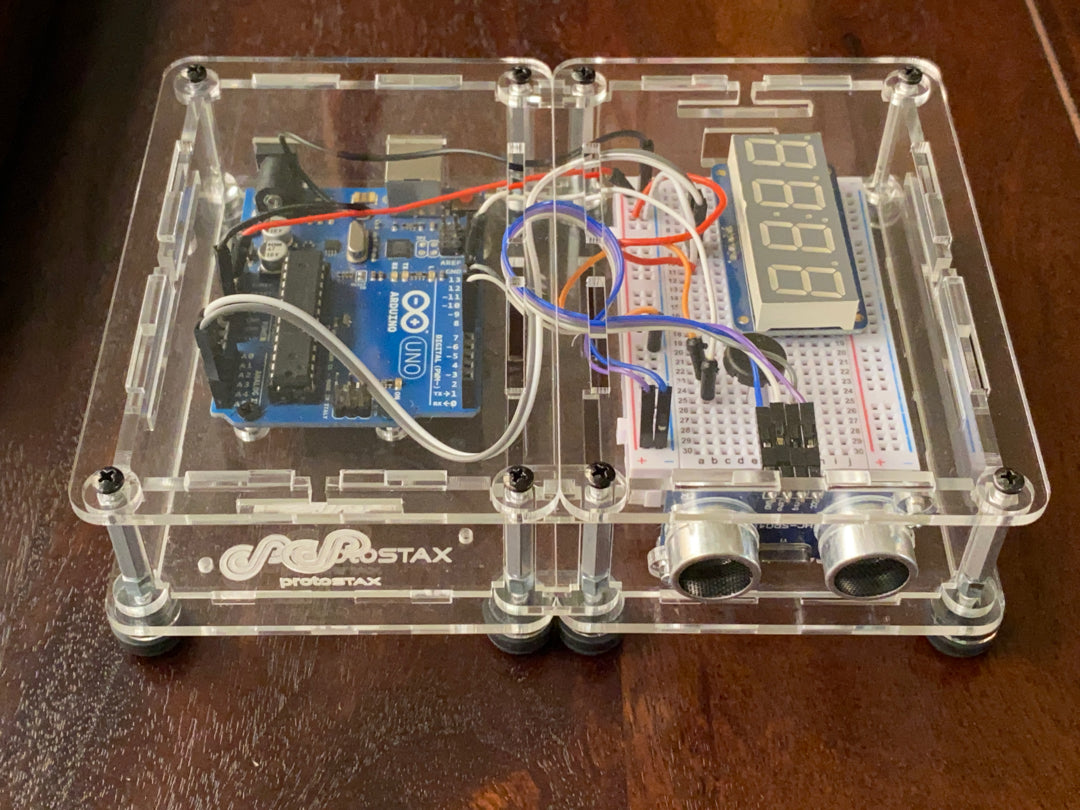

Mix-and-Match, Customize and Expand

Great on their own, ProtoStax Enclosures can also be combined with each other since they are modular, stackable and work together.

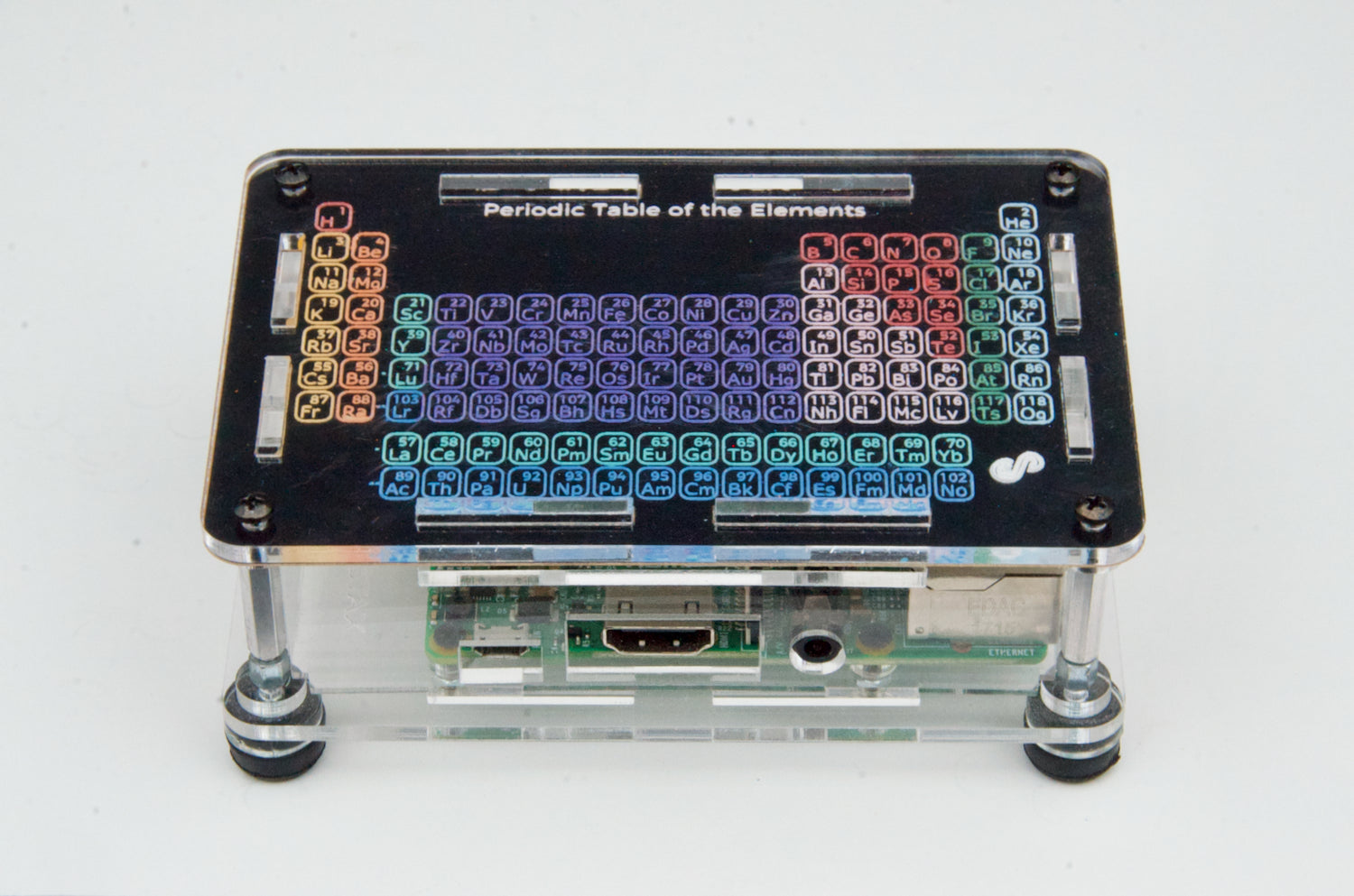

ProtoStax Decorative Tops - Periodic Table of the Elements (paintable Top Plate)

Decorative Elements

Add a splash of personality to your enclosures/cases with our Decorative Tops!

Our Decorative Tops display painstakingly laser etched details that showcase the artwork on a black background for contrast. The etching is done on the underside (and mirrored), so it is protected from grubby fingers and scratches and also gives some depth and an embossed effect.

You can add your own personalization by in-filling the laser-etched regions with your favorite acrylic paint for a nice pop of color - we'll show you how!

Go from STEM to STEAM - embrace art. We make it easier for you to get your feet wet. Bust out some paint, a brush and a palette (optional) . This is an easy way to try out painting and artwork – they're as satisfying as electrical circuits and programming, and very relaxing.

For those even more artistically inclined, the Blank Canvas Decorative Top is a great medium to paint on and ready to take on your artwork. The end result can be as simple or as elaborate as you'd like it to be!

The Blank Canvas Decorative Top offers an excellent paintable surface - channel your inner Van Gogh, Raja Ravi Varma, Monet or Katsushika Hokusai! Or ask your child, grandchild, sibling or friend to add their masterpiece to your creation to make it one for the ages! 😊❤️

Get started with ProtoStax today!

◆ ProtoStax for Arduino fits Uno AND Mega footprints

◆ ProtoStax for Raspberry Pi comes in three flavors: A+, B+/4B and Zero

◆ ProtoStax for Breadboard/Custom is useful for breadboarded circuits, breadboard-friendly micro-controllers, single-board computers, or any custom board that fits its dimensions: the usable space inside is 4″ L x 2.4″ W x 1.2″ H

◆ Extension Kits offer customizations that you can easily apply to your ProtoStax Enclosures

View all of our available options below and don’t forget to check out our extension kits!
