ProtoStax Fan Kit

ProtoStax Fan Kit

Regular price $5.00 USD
Regular price Sale price $5.00 USD
Sale Sold out
Shipping calculated at checkout.

Low stock: 6 left

Configuration
Color

Do you need some extra cooling for your enclosure? With the ProtoStax Fan Kit, that would be a breeze! (umm... pun intended?! ;-)

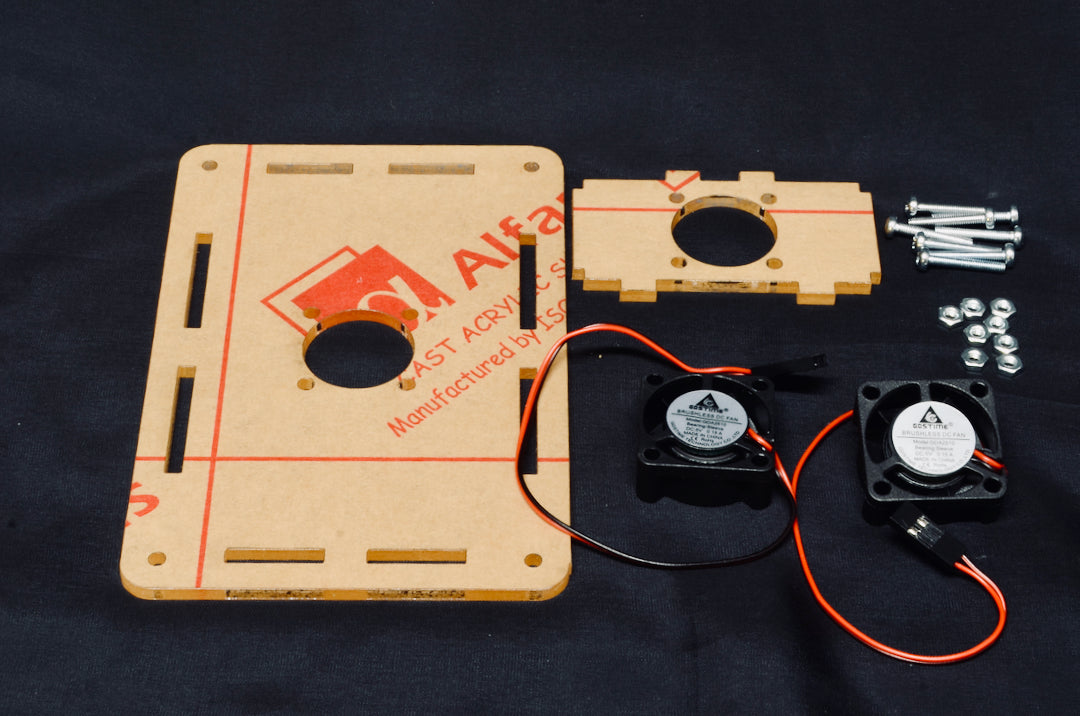

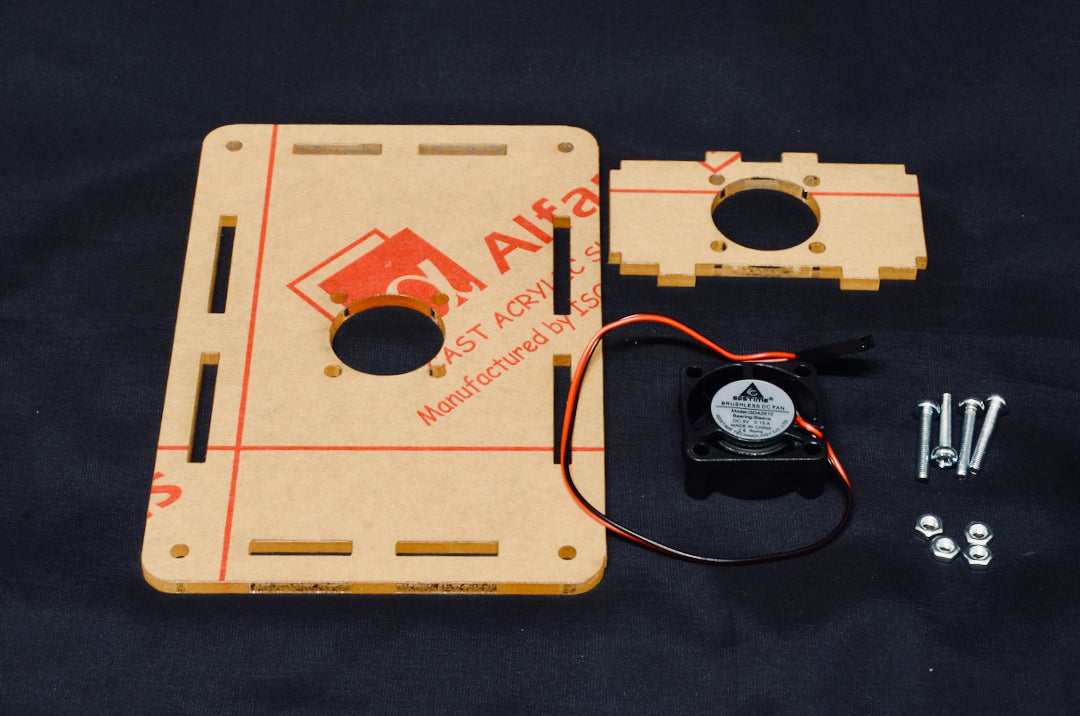

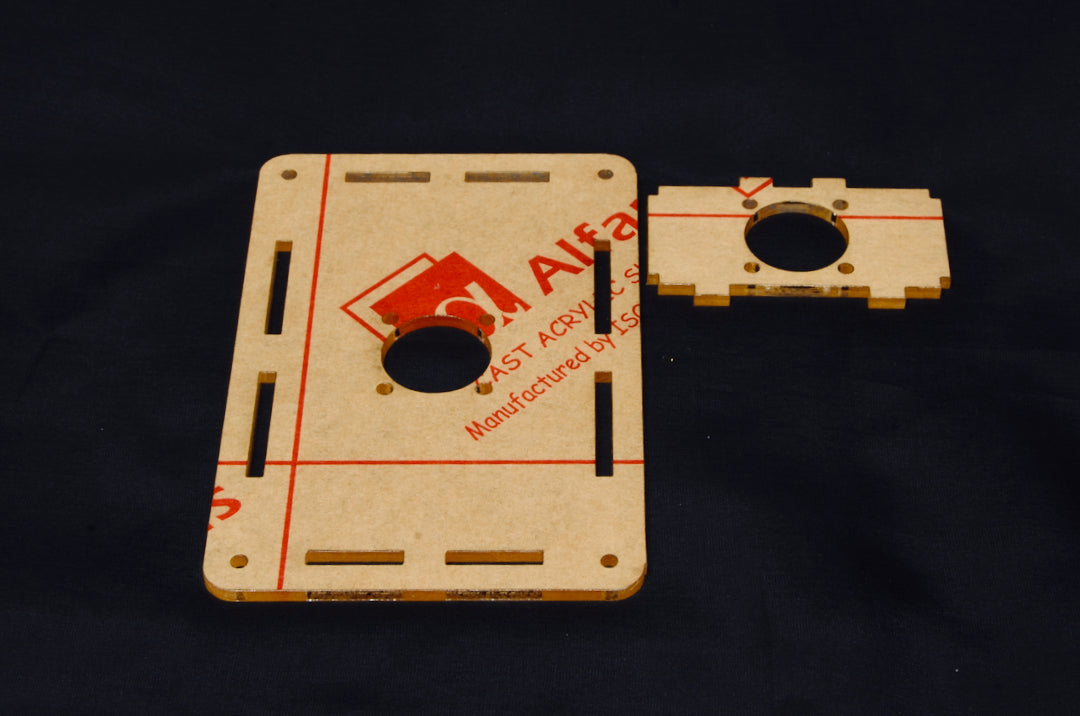

ProtoStax Fan Kit comes with a Top piece and a short side piece with mounting holes and cutout for a 25mm x 25mm  fan.

You can optionally select 1 or 2 fans to add to the order, or feel free to use your own! The fans we provide have 0.1" (2.54 mm) female headers (Dupont connector), which makes it very convenient to plug them directly into your Raspberry Pi GPIO.

This kit would typically be used with a Raspberry Pi (especially a Raspberry Pi 3B+ or 4B) but will work with any ProtoStax enclosure (if you have another compute intensive board or heat generating elements).

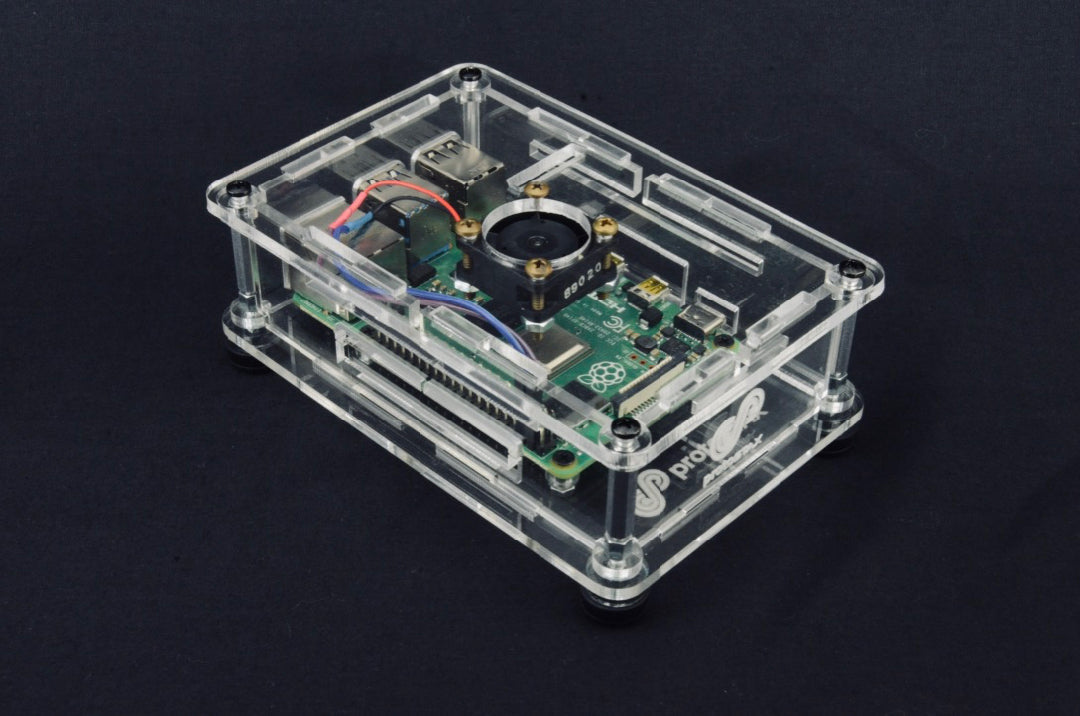

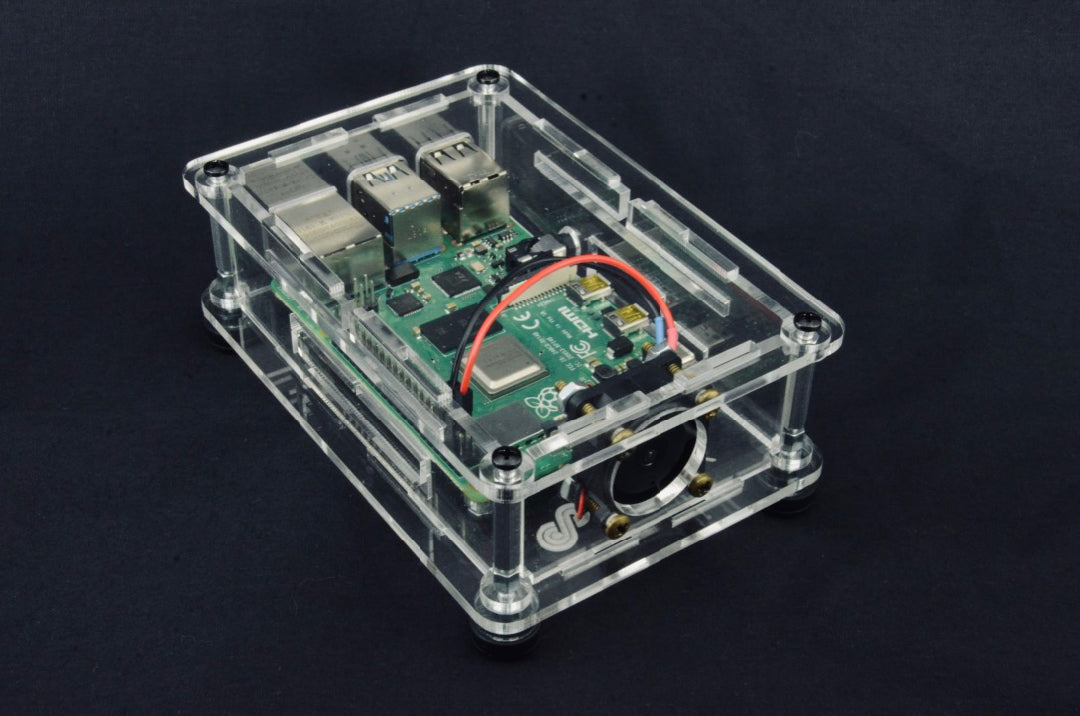

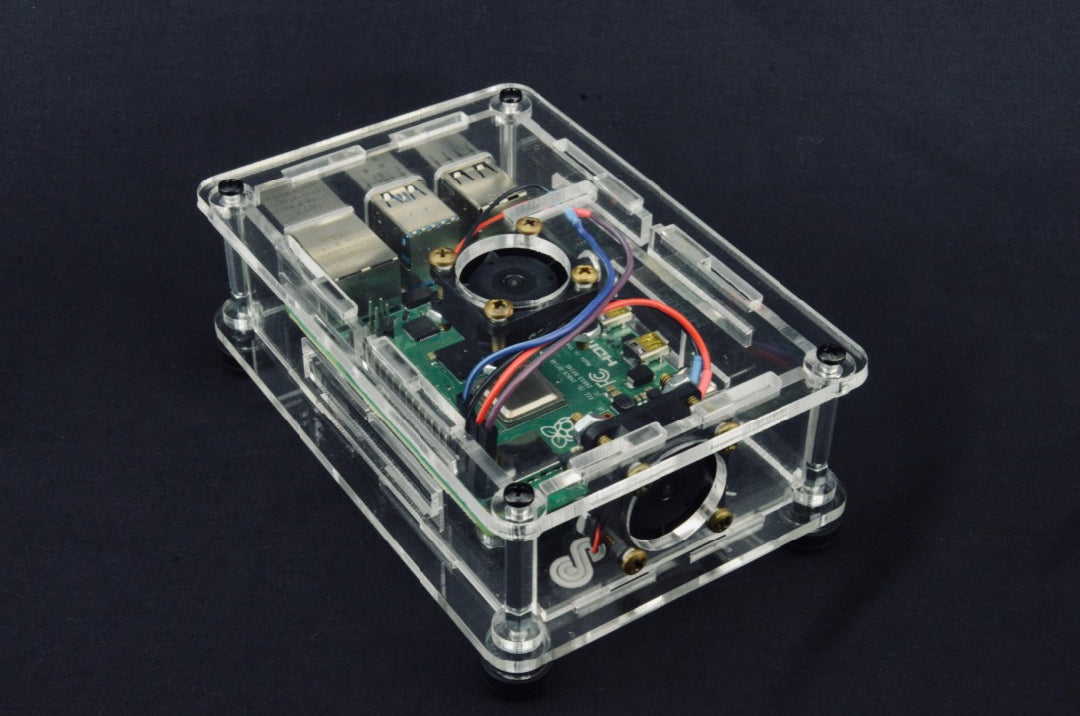

This gives the you flexibility of placement of the fan to either the top of the enclosure, or the short side, or BOTH for added cooling - you can pick the best option based on your stacking needs as well as functionality and aesthetics.

Simply replace the existing top of your ProtoStax Enclosure with the ProtoStax Fan Kit Top (with the fan screwed in), and/or replace the existing short side of your enclosure with the one from the ProtoStax Fan Kit. Voila!



Technical Details:

Fan:

Size:25x25x10mm
Connector: DuPont
Rated current: 0.15±10% Amp
Rated voltage:DC:5V
Bearing Type: Sleeve
Noise: 25±10%dBA
Fan speed: 10000±10%rpm
Airflow: 2.15CFM
Weight: 7g/pcs
Cable Length: 15cm

This Extension Kit does not include the Enclosure. Make sure to add a ProtoStax Enclosure to your order if you don't already have it!
