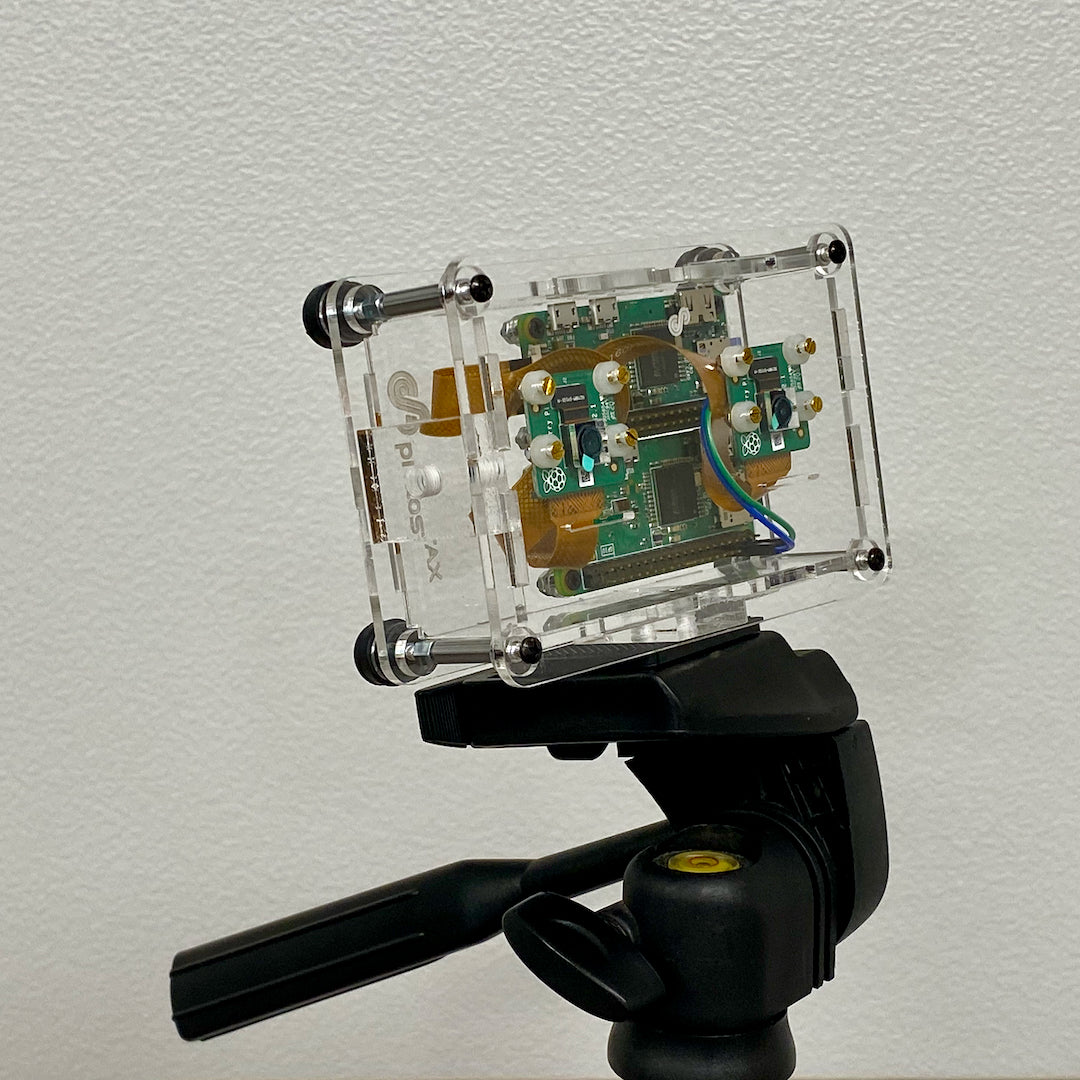

ProtoStax Stereoscopic 3D Camera Kit for Raspberry Pi Camera - 60mm Stereo Base

ProtoStax Stereoscopic 3D Camera Kit for Raspberry Pi Camera - 60mm Stereo Base

$3.00 USD
$3.00 USD
Sale Sold out
Shipping calculated at checkout.

Low stock: 3 left

Style

Add two Pi cameras and tripod mount(s) to your ProtoStax Enclosure for Raspberry Pi for some stereoscopic 3D photography/videography fun! This kit consists of a top plate with a mounting holes and cutout for two Pi Cameras, as well as side plates with 1/4-20 mounting hole to attach to a tripod.

It has two positions for a left and a right camera that are spaced 60mm apart (Stereo Base) for stereoscopic photography/videography.

This kit works with any ProtoStax Enclosure for Raspberry Pi (5/4/3 B+/B, A+ or Zero). The ProtoStax Enclosure for Raspberry Pi Zero can accommodate two Pi Zeros, which means you can mount and use two Pi Cameras simultaneously. The new Raspberry Pi 5 lets you connect two cameras as well, so you can use the Raspberry Pi 5 with the ProtoStax Enclosure for Raspberry Pi 5. This is useful for 3D videography as well, to be able to capture two feeds simultaneously. If you want to use it with other Raspberry Pis (A+/B+/4B), you will need an adapter board such as Arducam's Raspberry Pi Multi Camera Adapter which allows you to connect up to 4 cameras to a single Raspberry Pi.

Swap out the top plate and side plate of your existing ProtoStax Enclosure with the corresponding units from this kit. ProtoStax Enclosure not included - you need to get that if you don't already have it.

You can get just the Camera Mount Top Plate, or the Camera Mount Top Plate with short-side Tripod Mount piece, long-side Tripod Mount piece, or both long- and short-side Tripod Mount pieces. Choose your variant when ordering!

3D camera kit for the Raspberry Pi High Quality Camera is coming soon!


This Extension Kit does not include the Enclosure. Make sure to add a ProtoStax Enclosure to your order if you don't already have it!
